LA3JJ WSPR
Different setups for WSPR
The pictures below shows some of my favourite WSPR programs. By clicking on them
you will get a larger image. Each picture is just a screenshot from my screen in live
operation. I addition to the WinXP and Win7 some of the programs are run under
Ubuntu Linux. More than one computer may be involved. I am using VNC to see all
that is going on.
The pictures below shows some of my favourite WSPR programs. By clicking on them
you will get a larger image. Each picture is just a screenshot from my screen in live
operation. I addition to the WinXP and Win7 some of the programs are run under
Ubuntu Linux. More than one computer may be involved. I am using VNC to see all
that is going on.

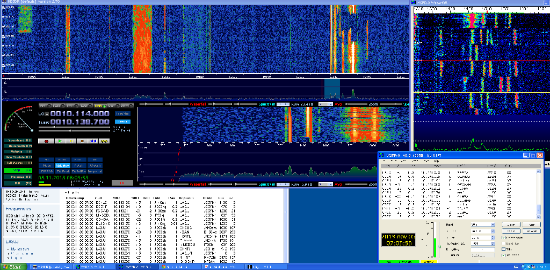

Screen 1
Using HDSDR and WSPR-X , virtual com ports and virtual audio cables. The SDR is the Peaberry.
Using HDSDR and WSPR-X , virtual com ports and virtual audio cables. The SDR is the Peaberry.

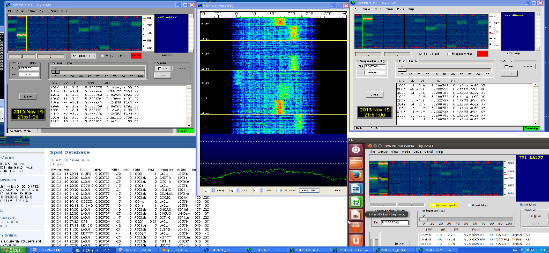

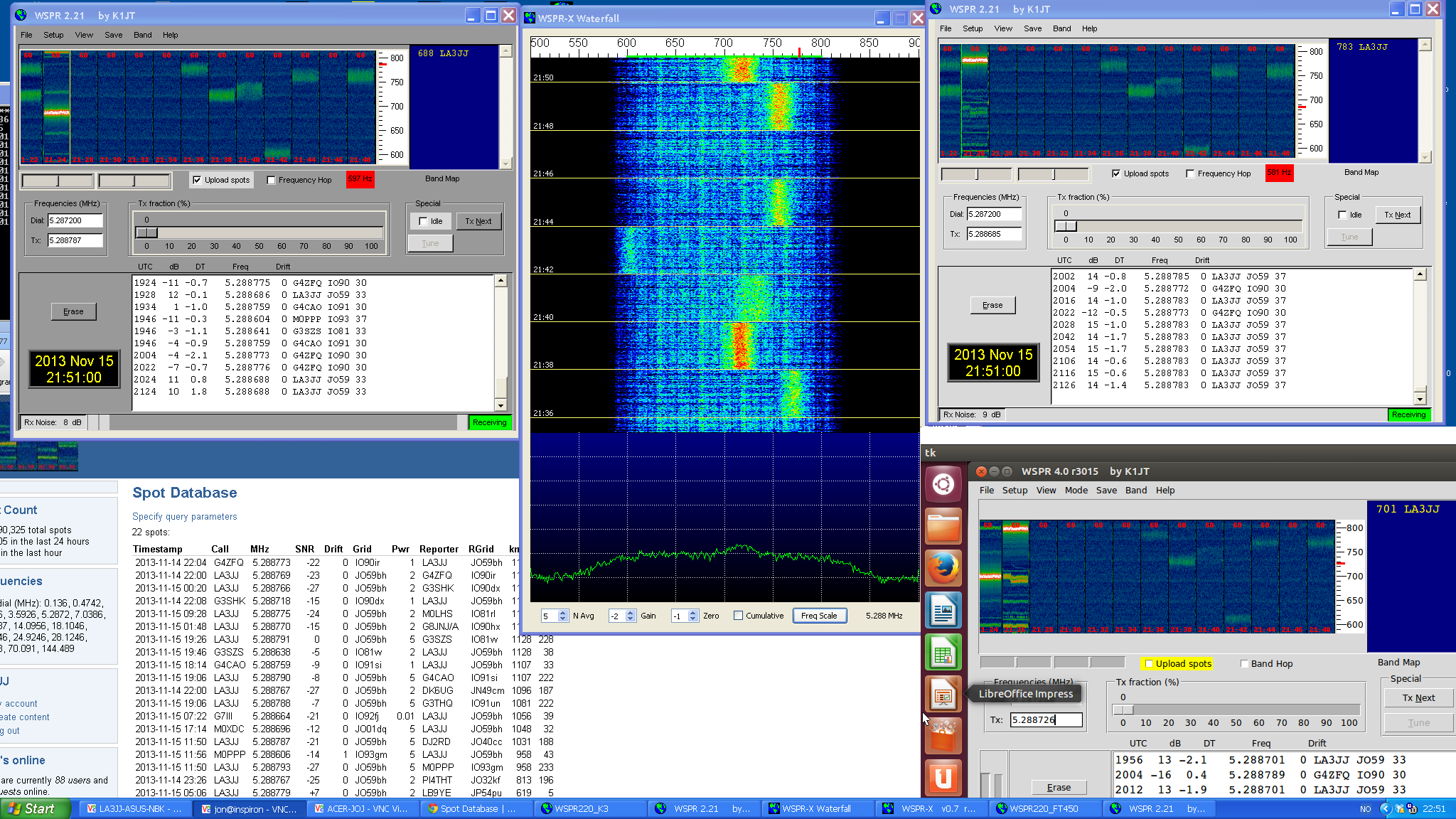

Screen 2
5 instances of WSPR on the same screen, the lower left is WSPR 4.0 running on Ubuntu in my
garage. K3 and K3 subreceiver, FT-450, and two softrock SDRs are in use.
5 instances of WSPR on the same screen, the lower left is WSPR 4.0 running on Ubuntu in my
garage. K3 and K3 subreceiver, FT-450, and two softrock SDRs are in use.
 |
 |
 |
 |
 |
